Cone Mill: Refining Granules Rather Than Crushing

After granulation or drying, materials often exhibit inconsistent granule sizes, irregular shapes and slight agglomeration. If left unaddressed, these defects directly jeopardize the flowability and consistency of downstream tableting or capsule filling. The role of the cone mill is to finely condition and resize granules without altering their core physical attributes.

Engineering Considerations of the Conical Structure

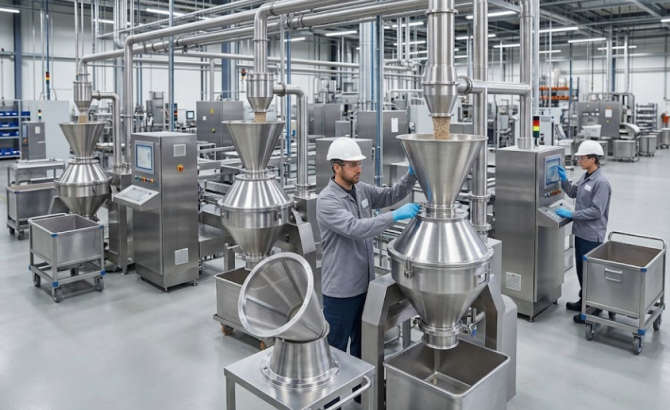

At the heart of a cone mill is a set of conical rotating impellers paired with a matching conical screen. As material enters the annular gap between them, it is subjected to the impeller's shearing and squeezing action, forcing it through the screen apertures. The elegance of the conical design lies in the progressive increase of shear force as the material travels from the wider top to the narrower bottom. Harder granules encounter stronger processing intensity at the narrower section, ensuring that materials of varying hardness are processed to a uniformly consistent size.

Process Objectives of Size Reduction & Conditioning

Milling and conditioning are not the same as primary crushing. While crushing involves significant size reduction, cone milling accomplishes three far more delicate tasks:

• Controlling upper size limits: Ensures no granules exceed the specified maximum size threshold, which is critical for downstream flowability.

• Conditioning granule morphology: Smooths angular, jagged granules into rounder shapes. Regularly shaped granules flow more uniformly into tablet press die cavities or capsule filling chambers, significantly minimizing fill-weight variation.

• Deagglomerating soft clumps: Gently breaks up loose lumps formed during granulation or drying without destroying the internal structural integrity of the individual granules.

The Screen: A Critical Vulnerability

Among all components, the conical screen demands the most attention. Wear and tear over prolonged operation or unexpected damage allows oversized granules to pass right through, instantly compromising the machine's conditioning performance. A pre-start visual inspection serves as the simplest yet most essential line of defense. Rotor impeller wear also requires periodic measurement; if the clearance between the impeller and screen widens, shear force drops, causing the output particle size to coarsen gradually. This subtle degradation can usually only be caught early through routine inspection protocols.
