Overview:

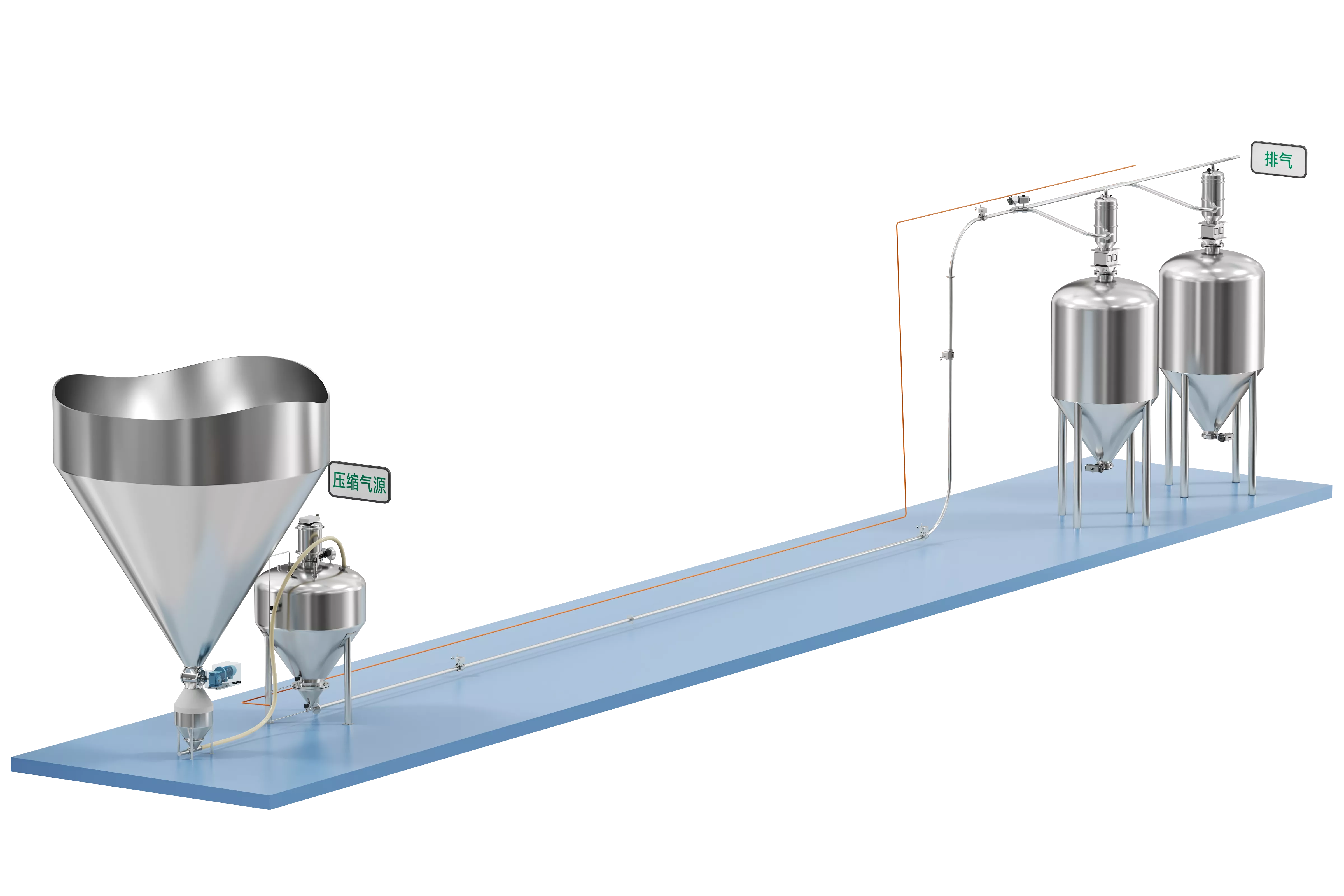

This system operates on high-pressure dense-phase and plug-flow conveying principles for long-distance closed material transfer. It moves materials safely at controlled low speeds with fully automated monitoring. Designed for high-value, fragile or containment-sensitive powders and granules, it delivers reliable performance over extended distances. Typical applications include lithium battery materials, ceramic powders, pigments, fillers, plastic pellets, metallurgical components, and pharmaceutical ingredients requiring enclosed long-distance transport.

Core Advantages

The system achieves conveying distances of over 500 meters.

It operates in high-pressure dense-phase mode with plug-flow technology.

Material flow speed inside the pipe can be controlled at 3–4 m/s.

Product breakage rate during conveying can be kept between 0.2% and 1.8%.

Full automation with real-time data monitoring ensures system safety.

Product Features

This system features high-pressure dense-phase conveying, plug-flow technology for gentle material handling, adjustable low-speed flow at 3–4 m/s, real-time data monitoring, and full automation for safe long-distance operation.

Product Applications

Designed for long-distance enclosed transfer, this system is suitable for lithium battery cathode and anode materials, ceramic powders, pigments, fillers, plastic pellets, metallurgical products, and pharmaceutical ingredients requiring low-breakage and contamination-free conveying.

Precautions

Inspect all pipe connections for leaks before startup. Monitor pressure levels continuously during operation. Do not exceed recommended material speed to prevent breakage. Shut down and depressurize the system before any maintenance. Follow material-specific handling guidelines.

Picture of Factory

Why Choose Us

1. Engineering depth

Layouts are checked against your P&ID and hazard study to align interfaces, venting, and access platforms with site standards.

2. Manufacturing traceability

Material certificates and weld maps can be bundled for FAT documentation, supporting audit-ready pharmaceutical projects.

3. Lifecycle support

Spare parts kits, on-site commissioning, and remote guidance shorten startup time and keep feeding performance stable.

FAQ

Q: What does "plug-flow" conveying mean for material protection?

A: Plug-flow moves material in separate slugs rather than as a continuous stream. This reduces particle collisions and lowers breakage rates significantly.

Q: How far can this system transport materials effectively?

A: The system can reliably convey materials over distances of 500 meters or more without significant loss of product quality or conveying efficiency.

Q: Is the system suitable for both powders and granules?

A: Yes. The dense-phase and plug-flow design handles both fine powders and larger granules while maintaining low breakage rates for fragile materials.
