Details

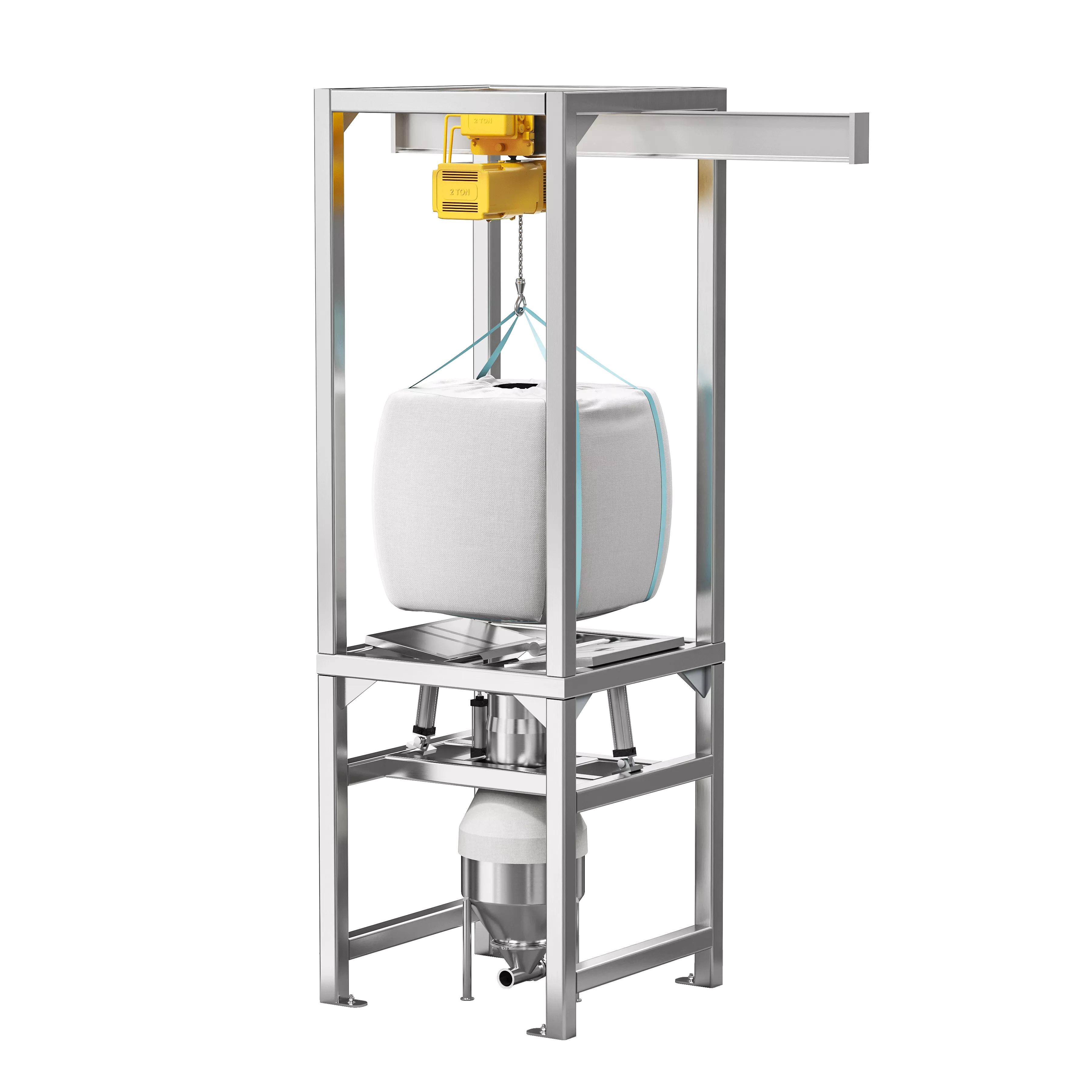

This equipment is designed for dust-free unpacking and discharging of bulk bag materials. It features a sealed connection structure that prevents dust generation and ensures operational safety. A mechanical clamping system prevents material leakage and waste. The integrated design allows easy alignment and clean discharge with minimal residue. Adaptive inflation technology fully expands bag folds to eliminate material retention. Optional add-ons include weighing systems, sampling devices, and inline dosing systems. Models XBU-500 and XBUT-500 offer capacities from 2000 to 5000 kg/h. Applications include pharmaceutical, chemical, and material industries.

Technical Specification:

Core Advantages

Sealed connection structure prevents dust generation and ensures production safety.

Mechanical clamping prevents material leakage and waste.

Integrated design allows easy alignment and clean discharge with no residue.

Adaptive inflation technology fully expands bag folds to avoid material retention.

Good expandability with optional weighing, sampling, and inline dosing systems.

Product Features

This feeding station includes a sealed docking interface, mechanical bag clamp, adaptive bag inflation for fold expansion, and optional weighing, sampling, and batching modules.

Product Applications

Designed for bulk bag discharging, this equipment is suitable for pharmaceutical, chemical, and material industries requiring dust-free and residue-free material handling.

Precautions

Ensure the bag clamps are fully engaged before opening the bag. Verify seal integrity before each discharge cycle. Clean the discharge chute regularly. Do not exceed 5000 kg/h capacity. Depressurize the inflation system before maintenance.

Picture of Factory

Why Choose Us

1. Engineering depth Layouts are checked against your P&ID and hazard study to align interfaces, venting, and access platforms with site standards. 2. Manufacturing traceability Material certificates and weld maps can be bundled for FAT documentation, supporting audit-ready pharmaceutical projects. 3. Lifecycle support Spare parts kits, on-site commissioning, and remote guidance shorten startup time and keep feeding performance stable.

FAQ

Q: How does adaptive inflation help with difficult powders?

A: It gently inflates the bag from inside, pushing out wrinkles and pockets where fine powders tend to stick, allowing complete gravity discharge.

Q: What is the main difference between model XBU and XBUT?

A: XBUT includes a taller frame (3500 mm vs 1500 mm) and a higher power rating (6.0 kW vs 0.5 kW), designed for applications requiring additional lift height or auxiliary drive power.

Q: Can the station weigh material as it discharges?

A: Yes. An optional weighing system can be integrated, allowing the station to measure discharged material and control batch cut-off automatically.
